FANUC A86L-0001-0125#A

  • Keyboard CRT/MDI 33 Keys (soft)
  • Alternate P/N N86D-3117-R010/02
  • Fujitsu number N860-3117-T010

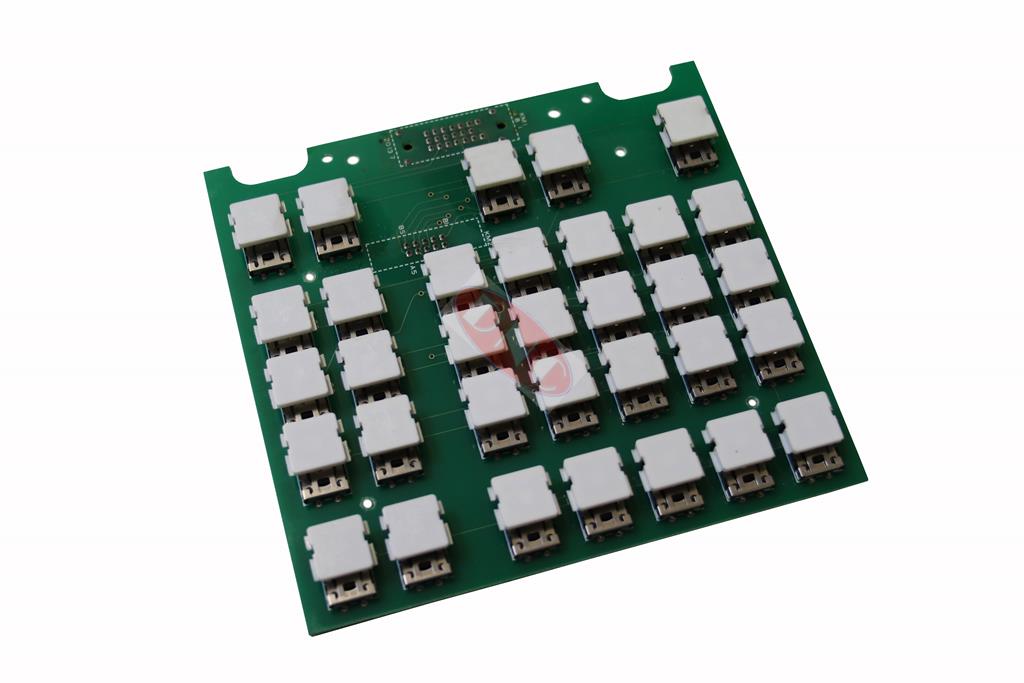

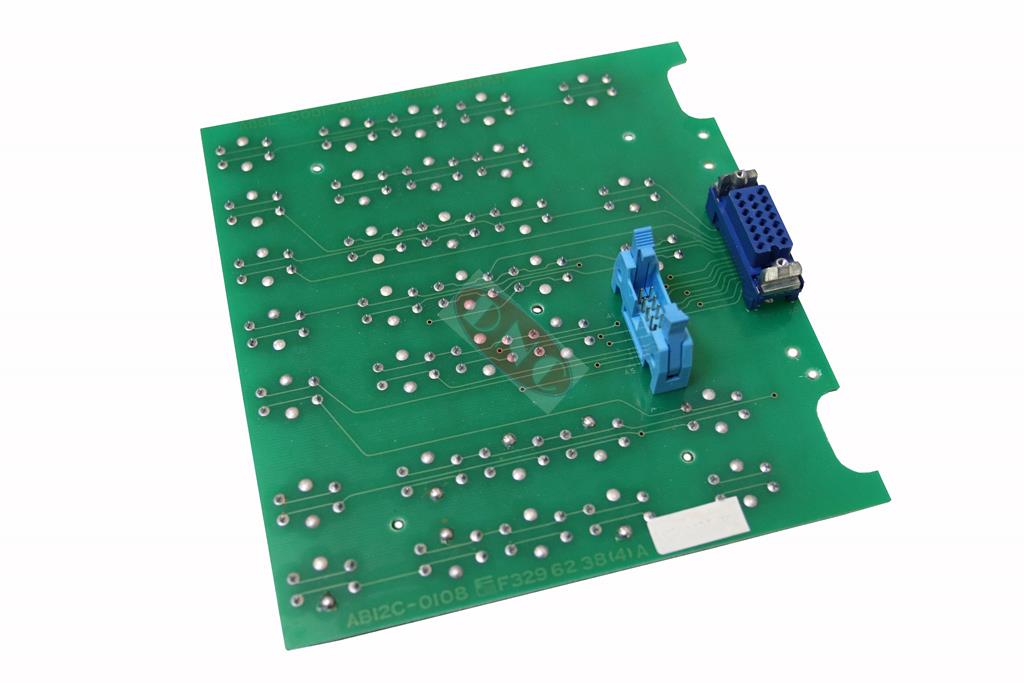

Fanuc A86L-0001-0125#A CRT/MDI Keyboard. This 33 soft key keyboard replaces the non #A designation in the latter Fanuc 0, 15, 16, 18, 21 control systems. Normally fitted to the right of the CRT monitor such as a A61L-0001-0092 or A61L-0001-0093 as well the colour 9″ monitors, it is fitted on small CRT/MDI units. As listed earlier the system include 0-MC, 0-TC, 0-MD, 0-TD, 0-MF, 0-TF, 0-Mate C, 16M, 16T, 18M, 18T, 21T, 21TB, 21M and many more.

DNC offers exchange, testing facilities and in the unlikely event of no exchange stock available can offer same day / 24 hour turnaround repair and testing services for this keyboard. Please note the A86L-0001-0125#A and the A86L-0001-0125 are NOT interchangeable.

Additional information


180 Day Warranty
