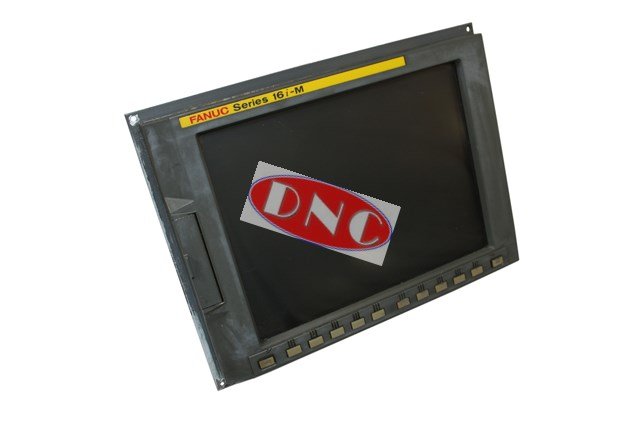

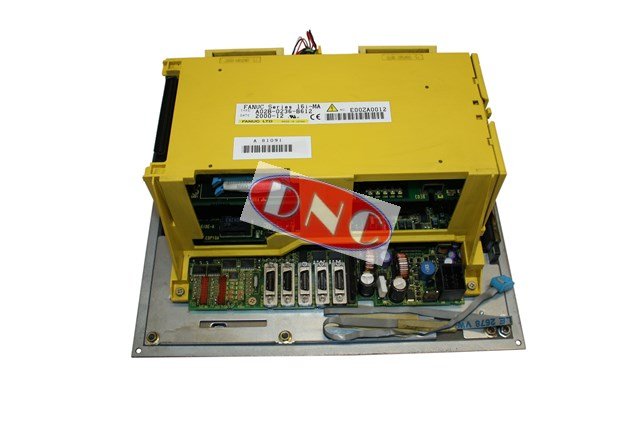

A02B-0236-B612

FANUC A02B-0236-B612

  • 16i-MA Control System
  • 10.4″ Colour LCD i Series
  • Fault find, Testing & Repair
SKU: a02b-0236-b612 Category: Tag:

Description

A02B-0236-B612

Fanuc A02B-0236-B612 Control. The GE Fanuc series 16i-MA system is the largest of the standard i control configurations. Similar to the 18i/21i its based around the master board from the A20B-8100-013x or A20B-8100-013x and has a faster CPU processor from the A20B-3300-0xxx family. This unit is configured to run 8 axis control, while running 4 simultaneously with single or dual spindles and standard i config: LCD/MDI, I/O link, PMC is SB5/SB6, PCMCIA slot, RS232 and optionally ethernet.

DNC does not offer the complete control, as the part number is generic. The system configuration has far more specifications beyond the part number (except for specially numbered 16i systems). However we do supply the masterboards, power supply, LCD panels, SRAM/DRAM/DIMM modules, FSSB, CPU boards and devices. Don’t forget we can test this control and fault find and repair it; as well back it up on our servers for your future needs.

If you do require the complete control system or repair of your A02B0236B612 then contact us to go through all the options we can offer.

Product Enquiry
