A06B-6240-H104

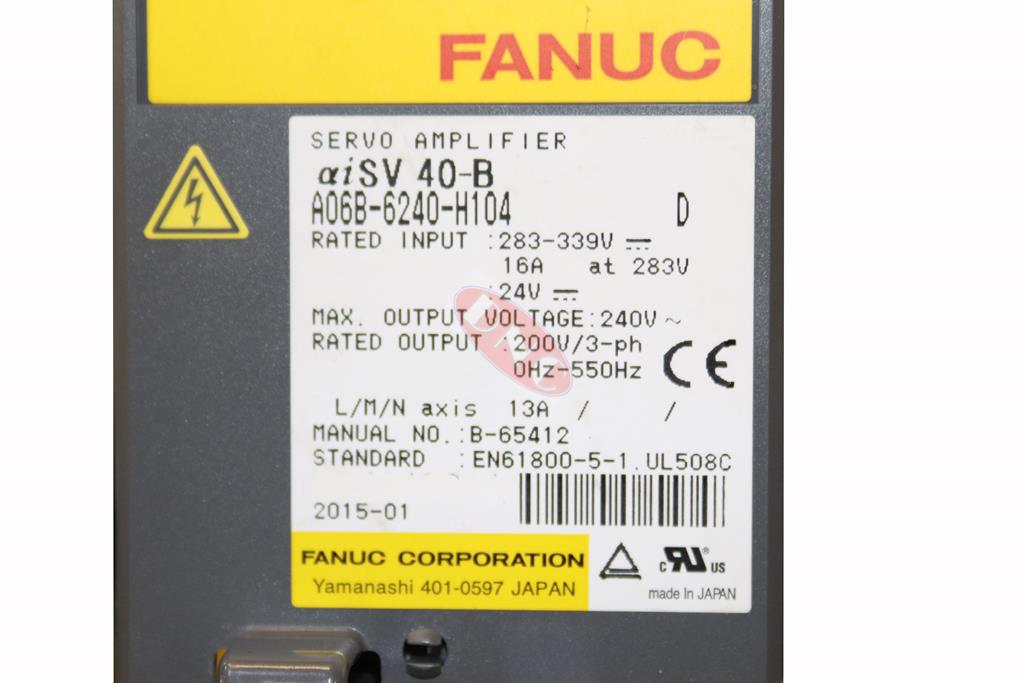

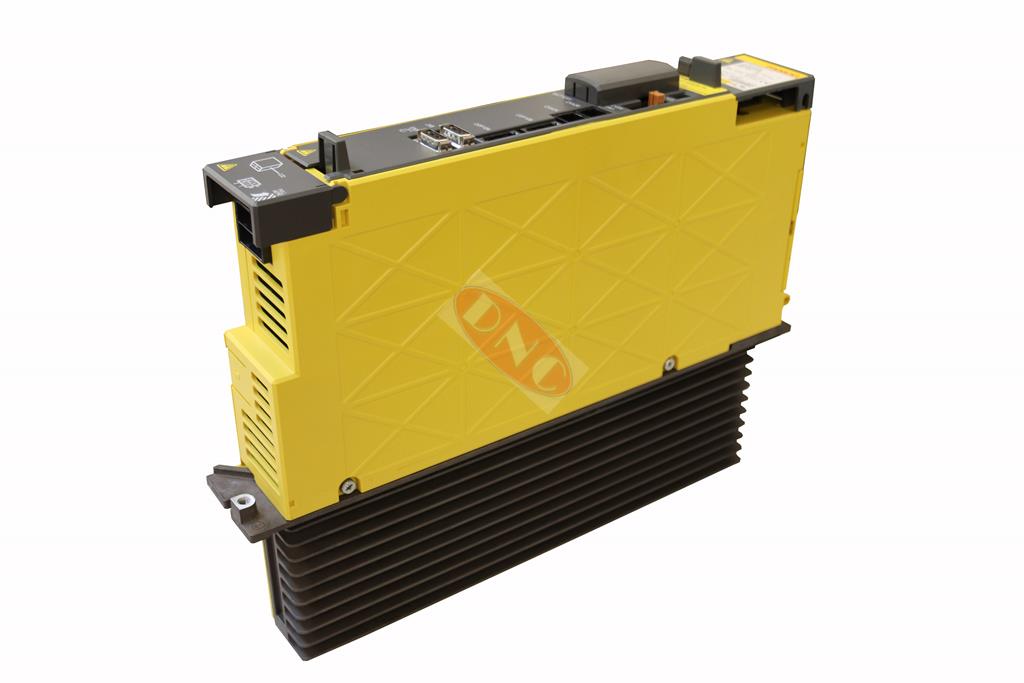

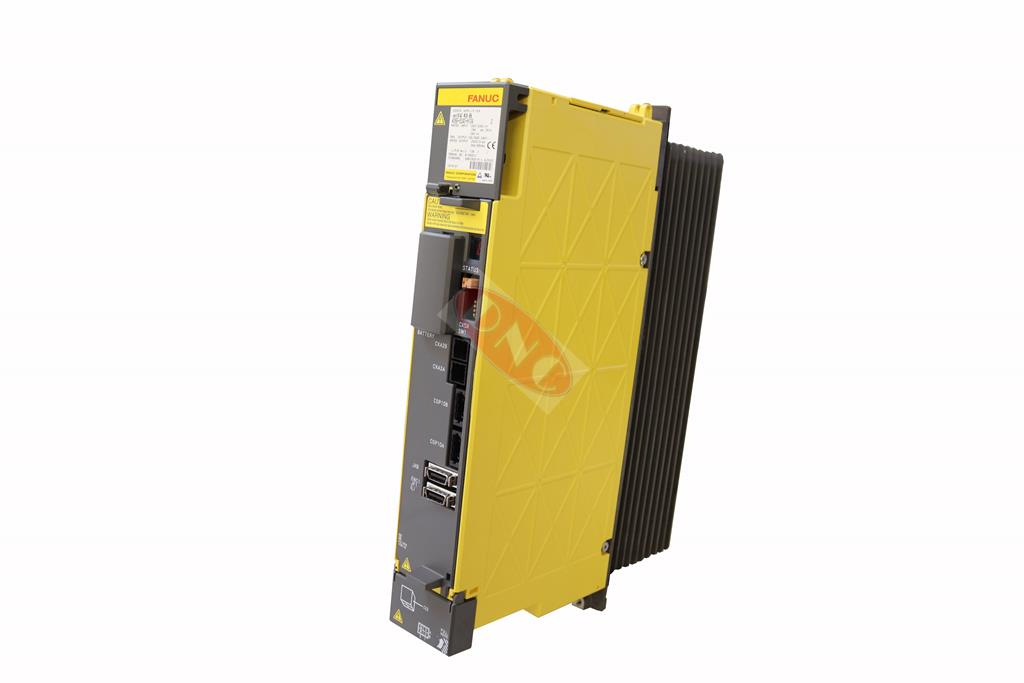

Fanuc A06B-6240-H104 aiSV servo module. Known as a servo amplifier module or aiSV this drive is single axis aiSV 40 or aiSV40-B dependent on its build date and which control system it runs with. The earlier aiSV 40 manufactured from 2011; and the aiSV 40-B built from late 2015 with an earlier varient running on many controls and later version running on 3x-B models or equiv 0i plus control.
Note: Labelled as a servo module; it is indeed a servo amplifier module!
Part of the ALPHA i generation of 200VAC type 62xx series. Also power supply 620x and spindle amplifiers 622x drives. This servo amp powers a singl2 motor rated at ai12/4000 or ai22/3000 series AC servo motors. Controlled from 0i or 3x-A controllers or later -B or plus verison. 60mm wide servo contains A20B-2101-0620 and A20B-2101-0890 with output of 13amps.
Please note -B varients are generally not interchangeable for earlier non -B versions of the servo drive due to software compatibility on amp and CNC control.
Services Offered on aiSV 40 or aiSV 40:
- Fanuc Exchange – When stocked we offer a fully refurbished READY to SHIP and tested aiSV1 servo amp on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
- Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours in business hours.
- Fanuc Surplus – For burn outs or for critical spares DNC can often offer surplus aiSV 40 servo drives.
- Fanuc Testing – For the faults that are either intermittent or not sure of the root cause we can test your aiSV amplifier.
- Fanuc Alarms – Consult our alarm tables for Fanuc ai servo amplifiers.
