a06b-6240-h205
A06B-6240-H205 aisv 20/20-B
A06B-6240-H205 - Image 3

A06B-6240-H205

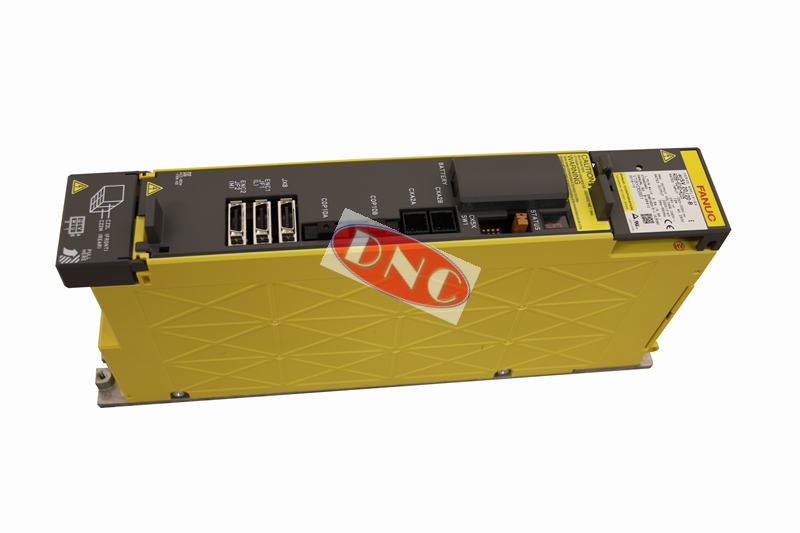

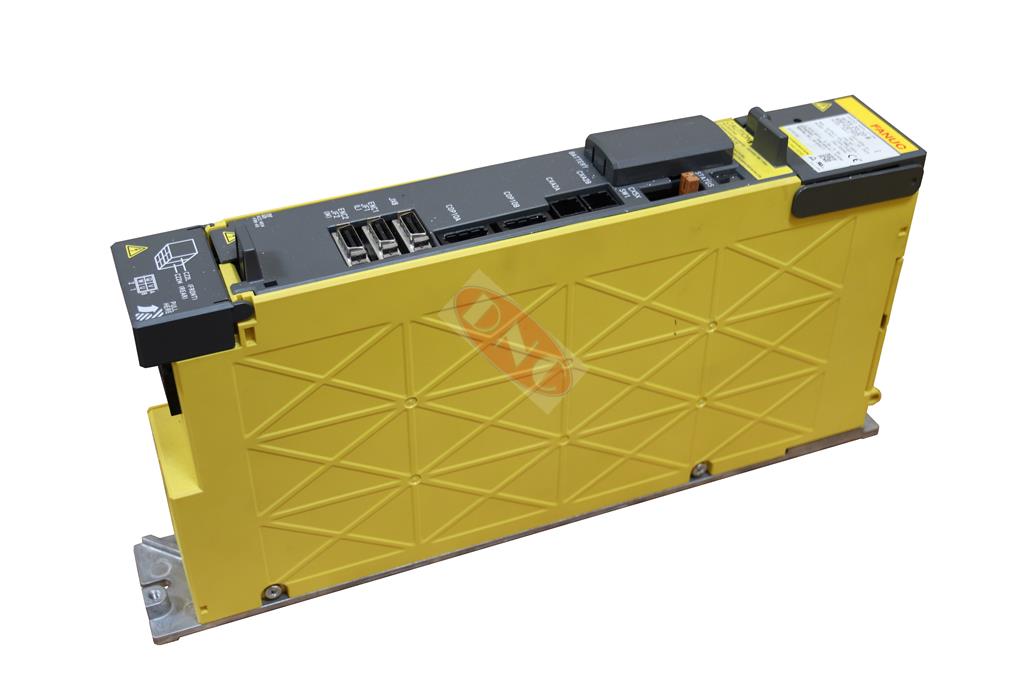

FANUC A06B-6240-H205

  • aiSV 20/20, aiSV 20/20-B servo module
  • Rated at 6.5A on L/M channels
  • Refurb Exchange = £995
  • Controlled by 0i or 3xi CNC series.
  • Exchange, test, surplus, repair
  • In stock. Ready to ship!

A06B-6240-H205

Fanuc A06B-6240-H205 aiSV servo module. Known as a servo amplifier module or aiSV this drive is dual axis aiSV 20/20 or aiSV 20/20-B dependent on its build date and which control system it runs with. The earlier aiSV 20*2 manufactured from 2011; and the aiSV 20/20-B built from late 2015 with an earlier varient running on various controls and later version running on 3x-B models or equiv 0i plus control.

Note: Labelled as a servo module; it is indeed a servo amplifier module!

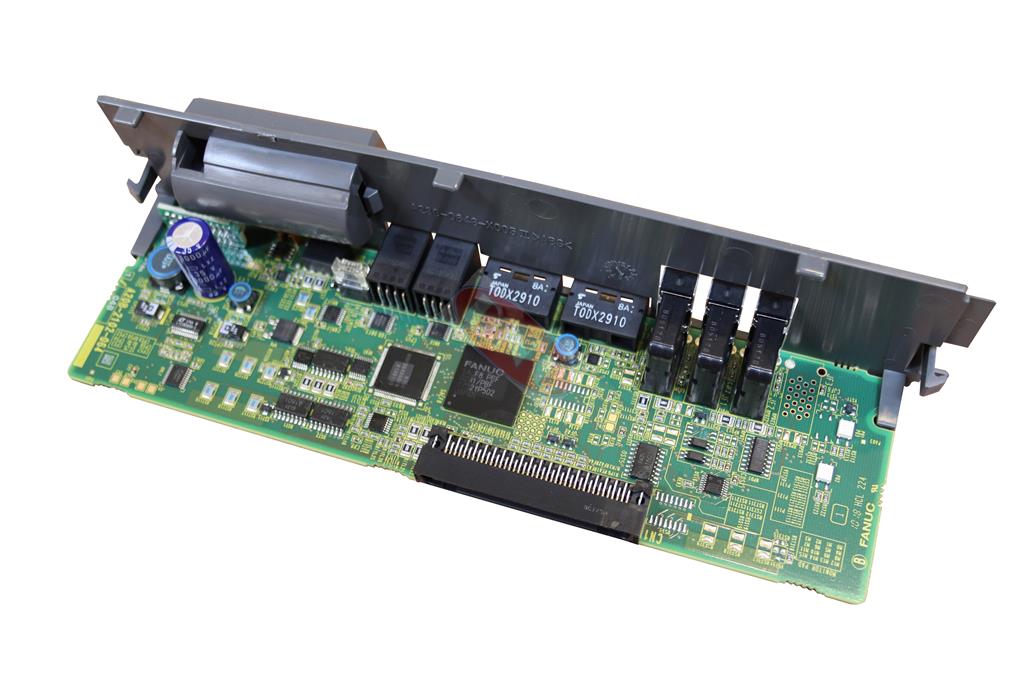

Part of the ALPHA i generation of 200VAC amplifiers from the 62xx series. Also power supply 620x and spindle amplifiers 622x drives. This servo amp powers two motors of the same ratings; namely aiS4/5000 or a8/3000iS series AC servo motors. Controlled from 0i or 3x-A controllers or later -B or plus verison. Servo contains A20B-2101-0620 and A20B-2101-0891 with output across all channels of 6.5amps.

Please note -B varients are generally not interchangeable for earlier non -B versions of the servo drive due to software compatibility on amp and CNC control.

Services Offered on aiSV 20/20 or aiSV 20/20-B:

  • Fanuc Exchange – When stocked we offer a fully refurbished READY to SHIP and tested aiSV2 servo amp on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
  • Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours in business hours.
  • Fanuc Surplus – For burn outs or for critical spares DNC can often offer surplus aiSV 20/20 servo drives.
  • Fanuc Testing – For the faults that are either intermittent or not sure of the root cause we can test your aiSV amplifier.
  • Fanuc Alarms – Consult our alarm tables for Fanuc ai servo amplifiers.

Contact DNC:

For clarification on availability or pricing for A06B-6240-H205 please contact us at +44 (0) 1793 615356 or email, use our contact forms throughout the website.
