A06B-6240-H211

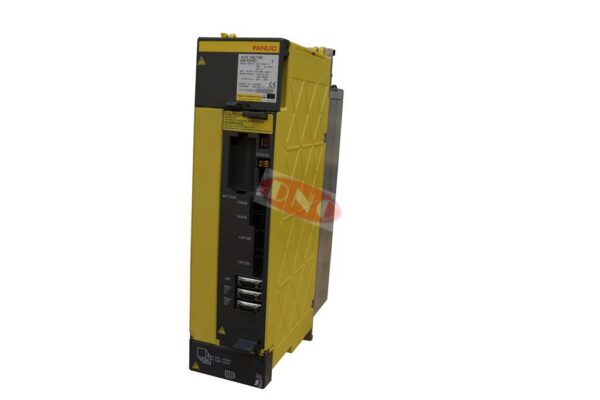

Fanuc A06B-6240-H211 aiSV servo module. Known as a servo amplifier module or aiSV this drive is dual axis aiSV 160/160 or aiSV 160/160-B dependent on its build date and which control system it runs with. The earlier aiSV 160*2 manufactured from 2011; and the aiSV 160/160-B built from late 2015 with an earlier varient running on various controls and later version running on 3x-B models or equiv 0i plus control.
Note: Labelled as a servo module; it is indeed a servo amplifier module!

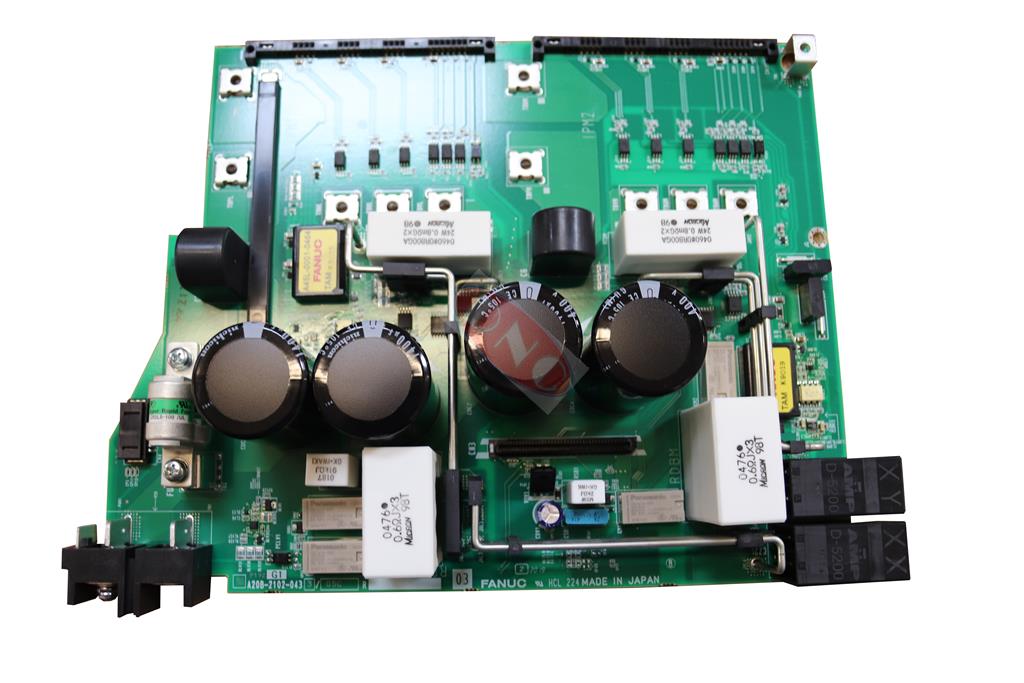

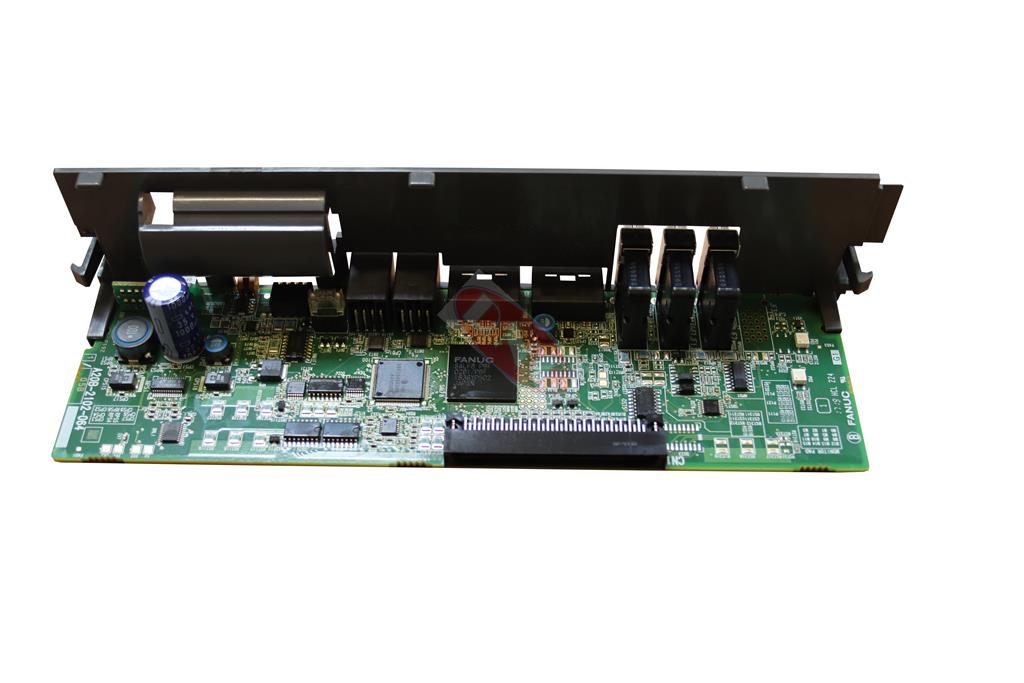

Part of the ALPHA i generation of 200VAC amplifiers from the 62xx series. Also power supply 620x and spindle amplifiers 622x drives. This servo amp powers two motors of the same ratings; namely aiS40/4000 or a50/3000iS series AC servo motors. Controlled from 0i or 3x-A controllers or later -B or plus verison. Servo contains A20B-2101-0635 and A20B-2102-0641 with output across all channels of 22.5amps.
Please note -B varients are generally not interchangeable for earlier non -B versions of the servo drive due to software compatibility on amp and CNC control.
Services Offered on aiSV 160/160 or aiSV 160/160-B:
- Fanuc Exchange – When stocked we offer a fully refurbished READY to SHIP and tested aiSV2 servo amp on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
- Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours in business hours.
- Fanuc Surplus – For burn outs or for critical spares DNC can often supply surplus aiSV 160/160 servo drives.
- Fanuc Testing – For the faults that are either intermittent or not sure of the root cause we can test your aiSV amplifier.
- Fanuc Alarms – Consult our alarm tables for Fanuc ai servo amplifiers.
Contact DNC:
For clarification on availability or pricing for A06B-6240-H211 please contact us at +44 (0) 1793 615356 or email, use our contact forms throughout the website.
