a06b-6290-h208

A06B-6290-H208

FANUC A06B-6290-H208

  • aiSV 40/80HV, aiSV 40/80HV-B servo module
  • Rated at 11.5A on L; 22.5A on M channels
  • Controlled by 0i or 3xi CNC series.
  • Exchange, test, surplus, repair
  • In stock. Ready to ship!

A06B-6290-H208

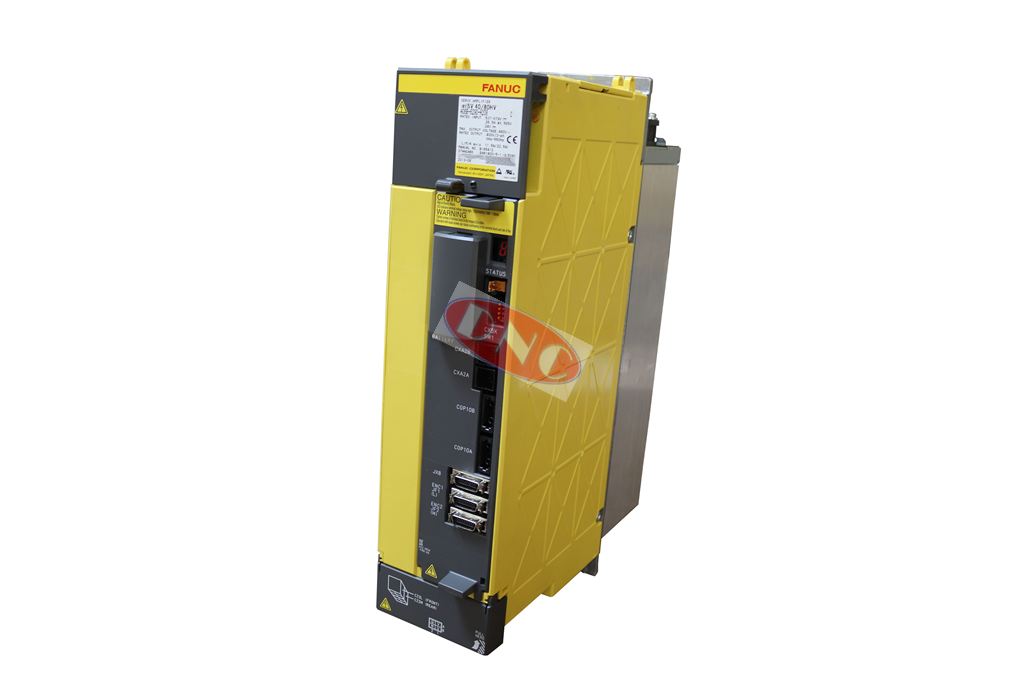

Fanuc A06B-6290-H208 aiSV servo module. Known as a servo amplifier module or aiSV this drive is dual axis aiSV 40/80HV or aiSV 40/80HV-B dependent on its build date and which control system it runs with. The earlier aiSV 40/80 manufactured from 2011; and the aiSV 40/80HV-B built from late 2015 with an earlier varient running on various controls and later version running on 3x-B models or equiv 0i plus control.

Note: Labelled as a servo module; it is indeed a servo amplifier module!

Part of the ALPHA i generation of 400VAC high voltage amplifiers from the 62xx series. Also power supply 625x and spindle amplifiers 627x drives. This servo amp powers two motors of differing ratings; namely aiS12/3000HV on L and ai22/4000HV AC servo motors on M channel. Controlled from 0i or 3x-A controllers or later -B or plus verison. Servo contains A20B-2101-0637 and A20B-2101-0892 with output across L of 11.5amp and M channel of 22.5amp.

Please note -B varients are generally not interchangeable for earlier non -B versions of the servo drive due to software compatibility on amp and CNC control.

Services Offered on aiSV 40/80HV or aiSV 40/80HV-B:

  • Fanuc Exchange – When stocked we offer a fully refurbished READY to SHIP and tested aiSV2 servo amp on exchange basis (SWAP) for economically repairable, complete and non interfered with part.
  • Fanuc Repair – Regardless of the reasons whether shipping in for investigation, looking for a cheaper solution or we don’t have stock. Turnaround is normally 24 hours in business hours.
  • Fanuc Surplus – For burn outs or for critical spares DNC can often offer surplus aiSV 40/80HV servo drives.
  • Fanuc Testing – For the faults that are either intermittent or not sure of the root cause we can test your aiSV amplifier.
  • Fanuc Alarms – Consult our alarm tables for Fanuc ai servo amplifiers.

Contact DNC:

For clarification on availability or pricing for A06B-6290-H208 please contact us at +44 (0) 1793 615356 or email, use our contact forms throughout the website.
