FANUC A06B-6290-H302

  • ALPHA i A06B6290H302 Servo in stock
  • Same Day / 24 hour repair possible

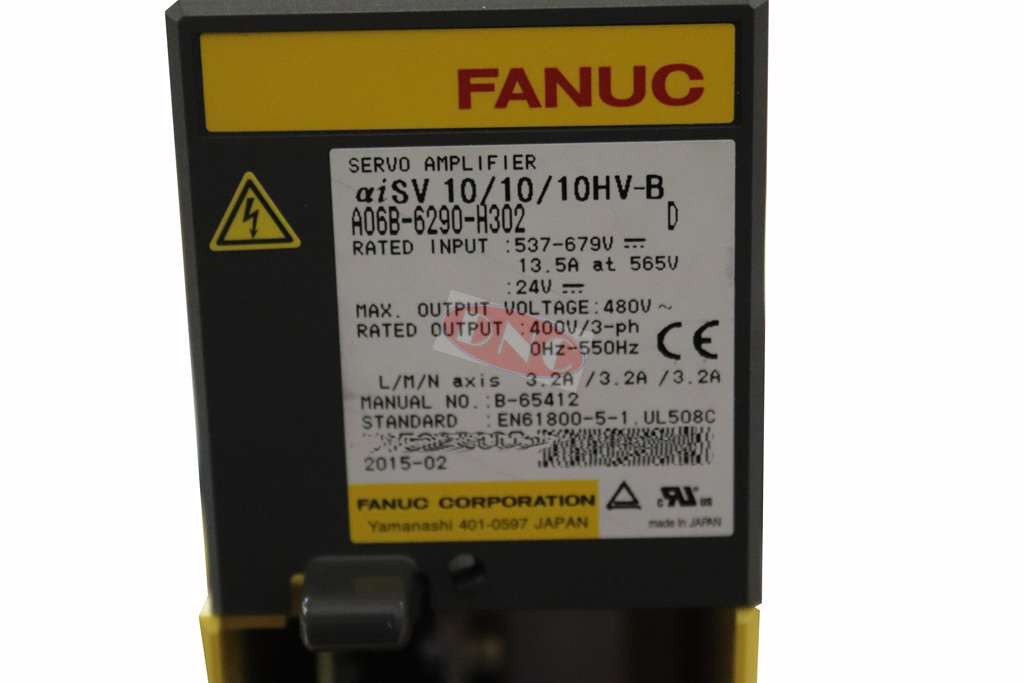

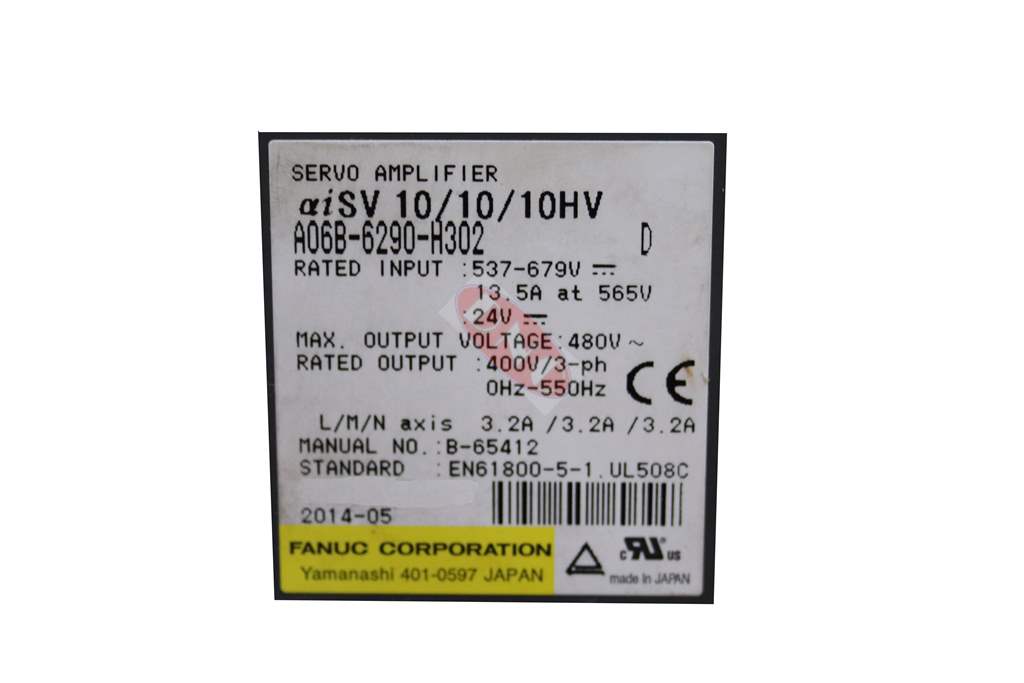

  • Testing of aiSV 10/10/10HV
SKU: a06b-6290-h302 Category:

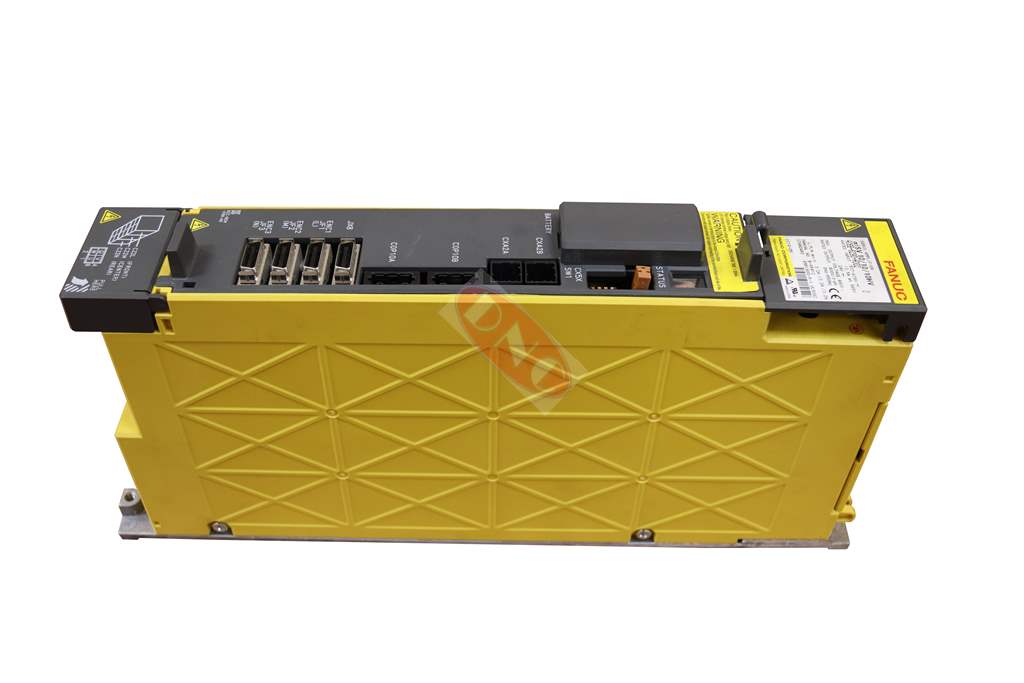

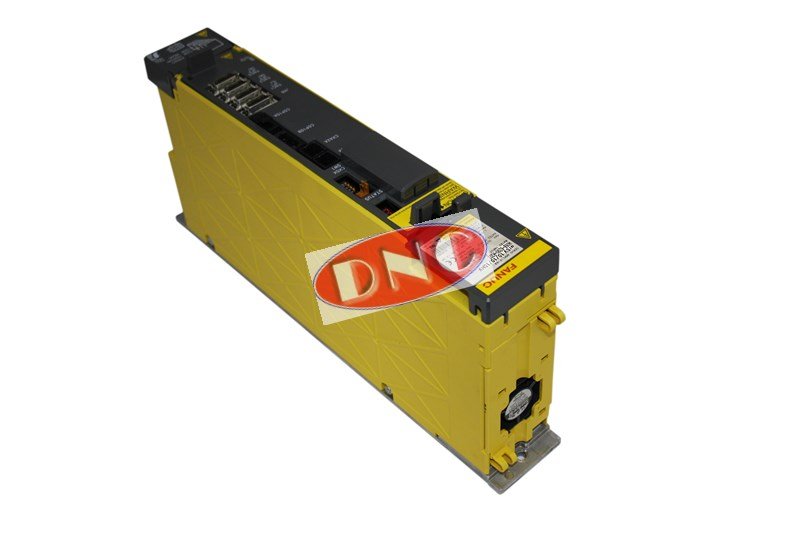

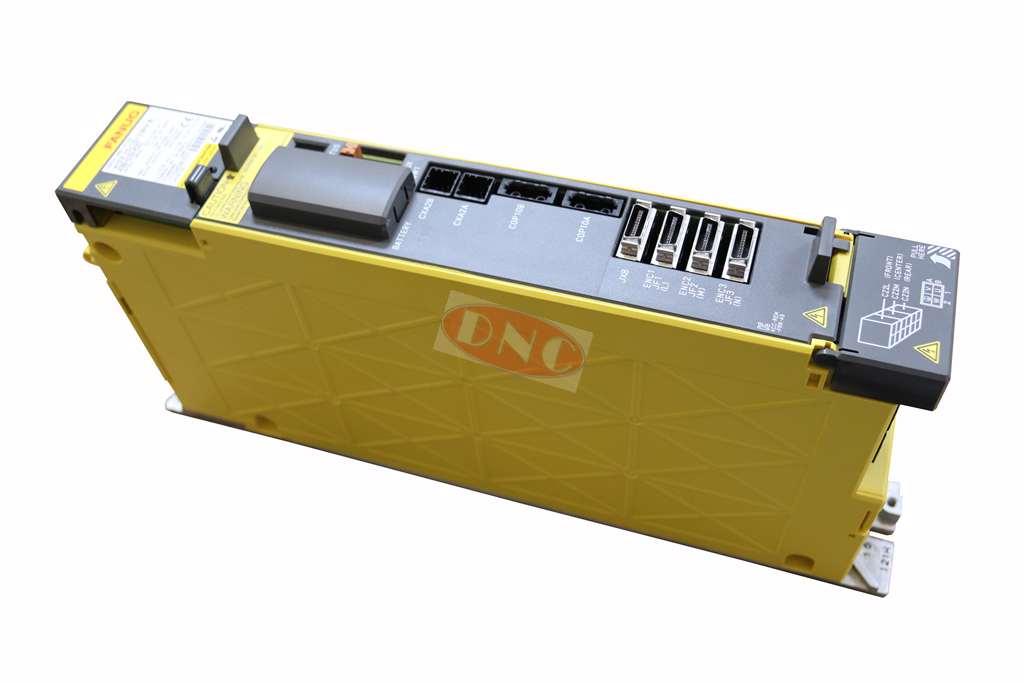

Fanuc A06B-6290-H302 ALPHA i Servo Amplifier Module. This aiSV 10/10/10HV generation is a triple channel L/M/N i series Servo amp heavily used. This series tri axis ALPHA Servo amp runs with the later post 2011 I version of Fanuc CNC controls (powered from the ai HV series), such as the 0i-MD, 0i-TD, 31i and other Fanuc controls. Replacing the first generation of high voltage ai series 400VAC A06B-6124/6127 (HRV3) Servo modules. This aiSV version of the FSSB Servo is rated at 3.2A per axis, and can drive ALPHA Servo motors from model ai2/3000HV up. DNC offer several services for the A06B6290H302 including exchange, repair, surplus parts, and same day testing facilities for HV Servo module.

The A06B-6290-H302 I FSSB is in stock, warranty is 180 days on exchange and repair, normally the aiSV 10/10/10HV drives, either the aiS2/5000HV or aiS2/6000HV model Fanuc i Servo motors. Exchange for speed (delivery same day or the fastest possible route to your factory) and repair if cost is more important than time considerations. Before calling and ordering this drive please look at the front to check whether it has the SW1 dip switches (later version for the 30i controls), or not.
