A06B-0753-B130

FANUC A06B-0753-B130

  • Rebuild AC Spindle Motors
  • AC model 3, Straight, Hi-RES feedback
  • Fanuc find, rewind and testing
  • 12 month warranty.
SKU: a06b-0753-b304-1 Category: Tag:

Description

A06B-0753-B130

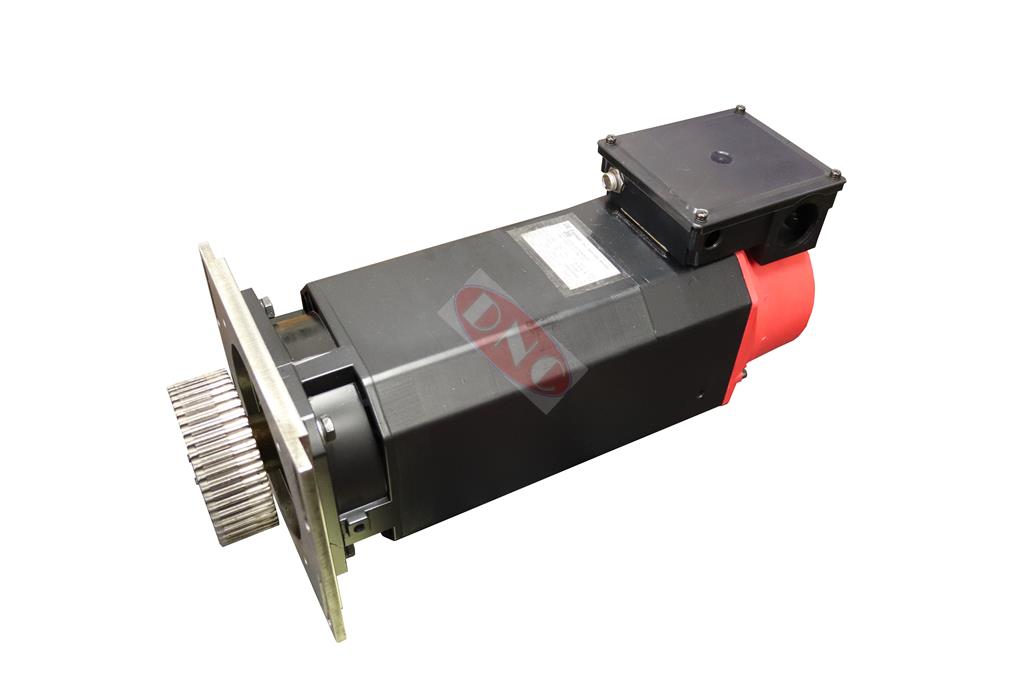

Fanuc A06B-0753-B130 spindle motor services available. Electrical info for this Model S3 motor is: 5.5 Kw 30min Cont., 1500 – 6000 rpm. The motor is flange mount, straight shaft with rear exhausting fan and a high resolution feedback system (Hi-Res). This motor is unique as it has a longer rotor than standard S series model 3 motors, as well as longer body sections.

A06B-0753-B130 motor belongs to the S series of which this is a small but very specialised version with the Hi-Res feedback for high end ultra precision machine tools. Normally these are found on machines with C axis. Normally running with drives such as the series A06B-6064-H305 and being controlled by series 0-TC (Zero model C).

At DNC we offer testing of the motor and sensor feedback on our closed loop in-house built Fanuc testing facilities. We offer rebuild and repair facilities for this 3S motor; including rewind and complete overhaul. We cannot deal with damaged shafts. The shaft is unique too A06B-0753-B130#3000 and you will need to contact the OEM. Assuming no damaged shaft then we can do most repairs to this motor. With no problems then we offer a 12 month warranty. Contact us for more information on the faults related to the motor, accompanying AC spindle drive or the CNC control.

Additional information

warranty

180 Day Warranty

Product Enquiry
