a06b-1451-b110 Fanuc aiLP22 spindle motor

A06B-1451-B110

FANUC A06B-1451-B110

  • ALPHA i AC spindle motor
  • Quick test and assessment
  • Repair turnaround dependent complexity
  • Model aiLP22/8000 (Flange Mounted)
  • 12 Month Warranty.

A06B-1451-B110

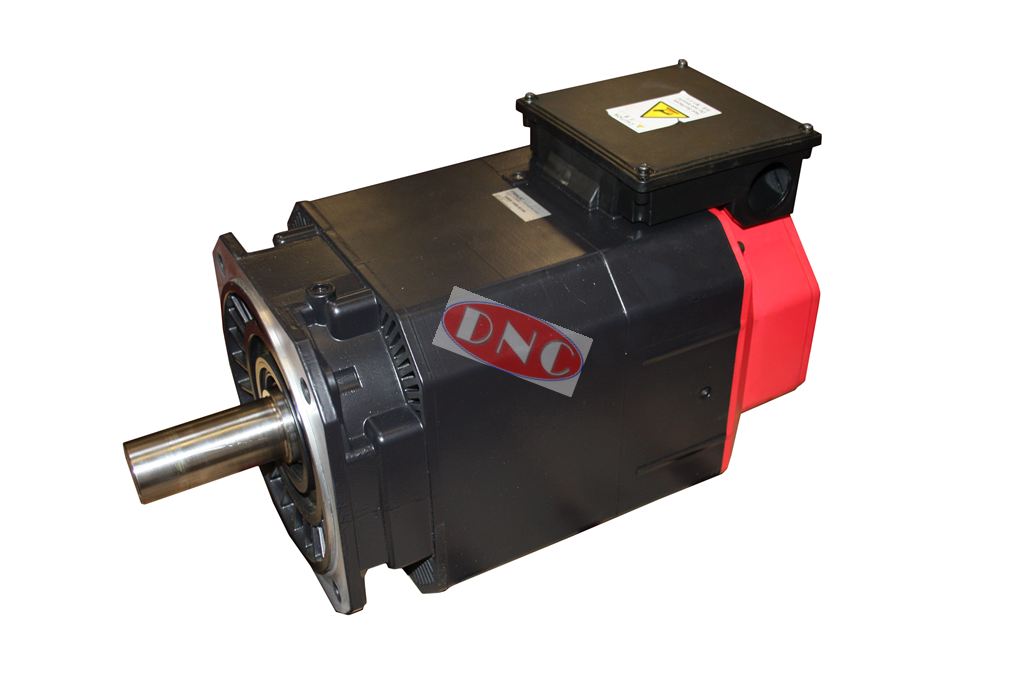

Fanuc A06B-1451-B110 AC spindle motor. Part of the ALPHA i series of motors with model designation aiLP22/8000. This large AC spindle motor has the following rating: LOW >> S1 (continuous) 7.5kW @ 700-1500 rpm / 11kW @ 1500; S2 (15 min) 18.5kW @ 400-1000, 11kW at 1500 rpm. HIGH >> 15kW at 6000, 11kW at 8000 rpm. Motor has a straight shaft, rear exhausting fan and flange mounted.

This A06B1451B110 motor from the Fanuc ALPHA i spindle motor range is fitted with a non standard AC spindle feedback for the latest 6141, 6142 series aiSP spindle amplifiers and Fanuc 30/31i series CNC controls.

DNC offer a warranty for all aiLP22/8000 of 12 months.
