A06B-1551-B200

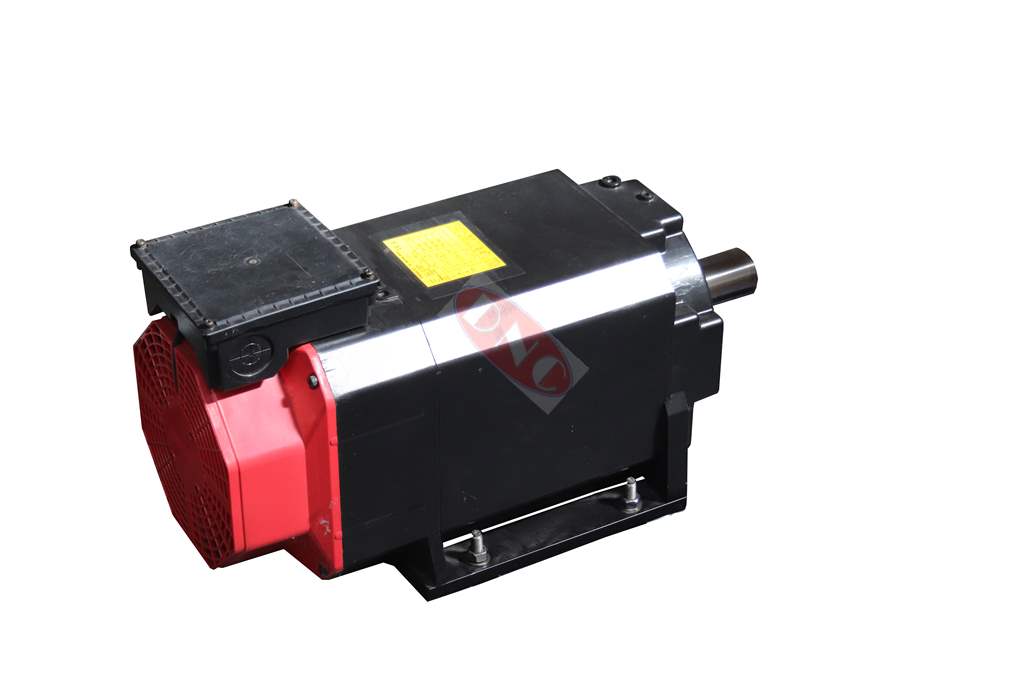

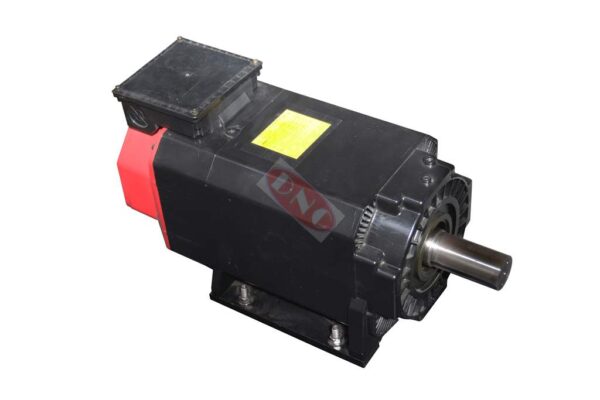

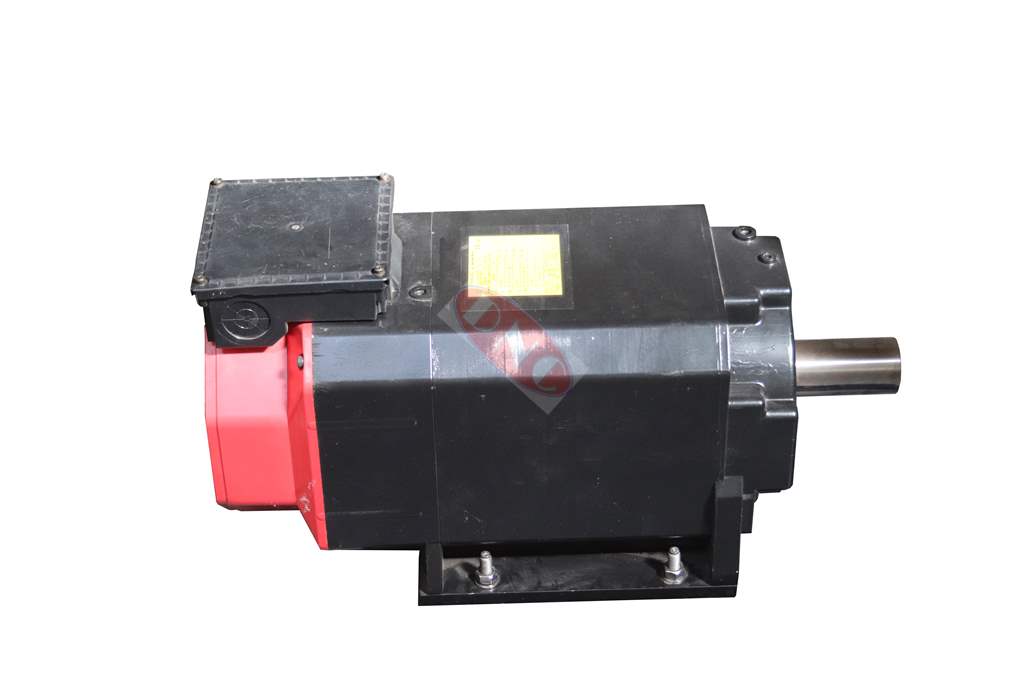

Fanuc A06B-1551-B200 AC spindle motor. DNC support the ALPHA i series model aiLP 22/6000HV motor exchange, test and repair. 12 month warranty.

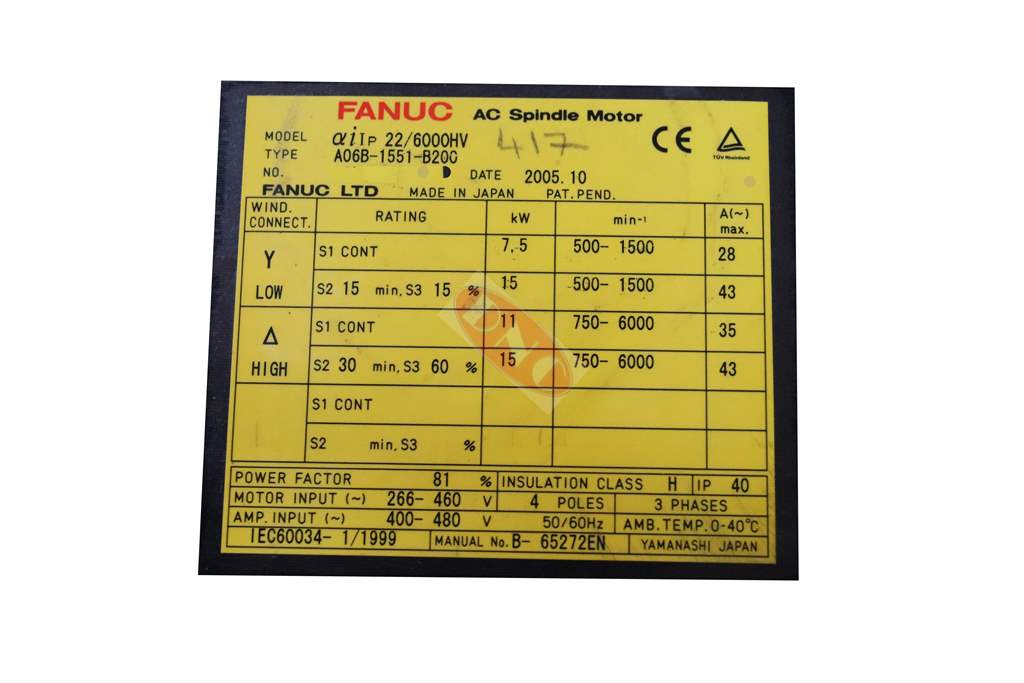

This high voltage AC spindle motor has the following rating: LOW >> S1 (continuous) 7.5kW @ 500-1500 rpm; S2 (15 min) 15kW @ 500-1500. HIGH >> S1 (continuous) 11kW @ 750-6000 rpm; S2 (30 min) 15kW @ 750-6000. Motor has a straight shaft, rear exhausting fan and foot mounted.
This A06B1551B200 motor from the Fanuc ALPHA i spindle motor range is fitted with a non standard AC spindle feedback for the latest 6141, 6142 series aiSP spindle amplifiers and Fanuc ZERO i or 3xi series CNC controls. Normally this motor is available either as exchange (stock permitting), outright surplus if available, testing and repair services.
DNC offer a warranty for all aiLP 22/6000HV of 12 months.
