A02B-0072-B504-E

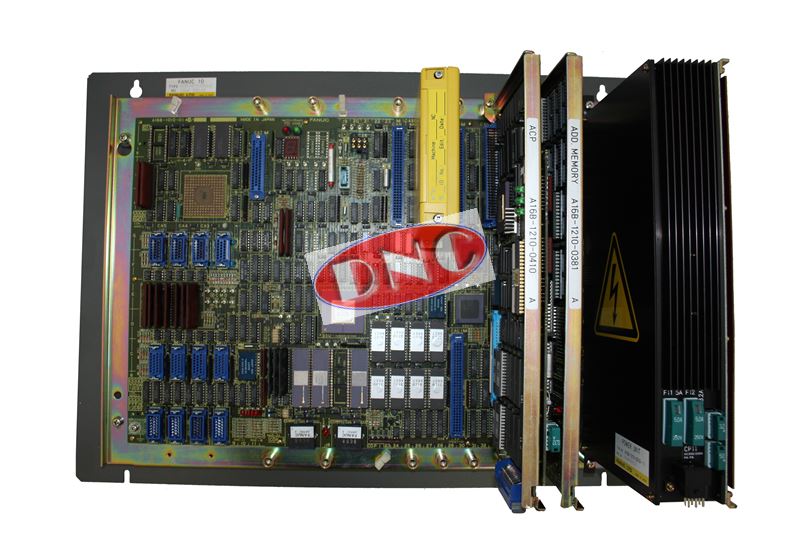

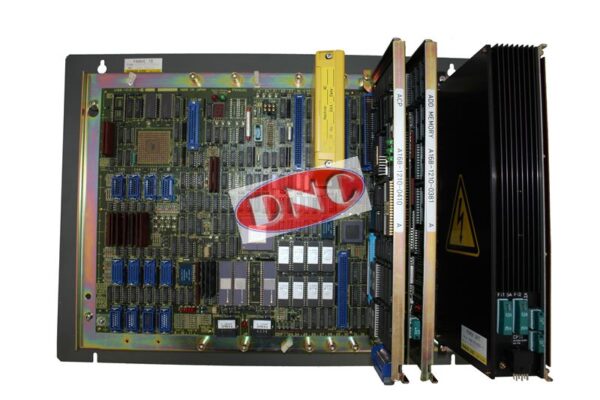

Fanuc A02B-0072-B504-E Basic Unit. This is the backplate number that has a variety of Fanuc SYSTEM 10 model A. Including series 10-TF, 10-TA which is also part of the series 10. The master PCB is then screwed onto this backplate (there were four master PCBs released) and all the peripheral PCB’s are then fitted onto the master with the minimum being a PSU, and I/O PCB. The two analogue masters were A16B10100141. This master for basic 10-T configurations runs memory, 2 or 3 axes control, spindle control and the PMC-L (ladder). Fitted on machine tools such as Chrurchill, Mazak, Nakamura, Yam, Suga etc.
We do not supply complete controls originally release in 1986. Wouldn’t it be great if we could offer an out the box 10T too sit in place of your current problem control system. If you require the complete control maybe look at retrofit options with your local CNC service engineer. However we do carry hundreds of 10A series Main Boards and peripheral or additional cards such as I/O PCB, graphics PCB, etc.
If you do require the complete control system or repair of your A02B0072B504E then contact us to go through all the options.
