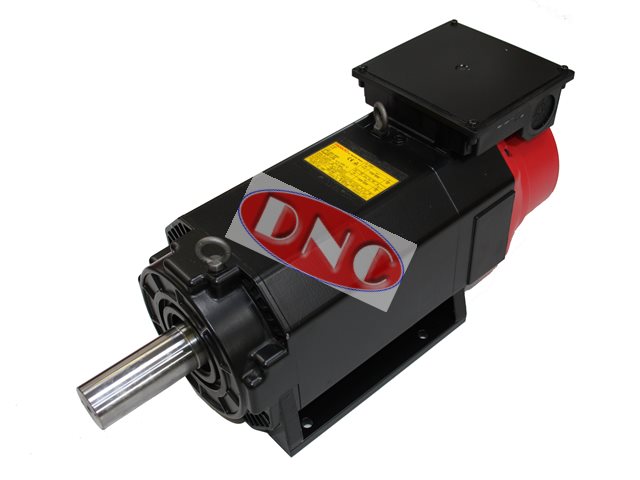

FANUC A06B-0855-B100

  • ALPHA A06B0855B100 Spindle
  • Same Day Test / 24 hour repair possible
  • a8/6000 straight shaft, key, flange mounted.
SKU: a06b-0855-b100 Category: Tag:



FANUC A06B-0855-B100 ALPHA model 8/6000 Spindle Motors. Info for this motor: Rated at S1 cont: 7.5kw between 1500-4500 rpm, and 4.5kw @ 9000 rpm – Max 44 amp; S2 30min Cont. 13kw between 1500-4500 rpm, and 7.5kw @ 6000rpm – Max 63 Amp – 3 phase – 4 pole class H insulation IP54, 149-214V, straight shaft with rear blowing fan and flange mounted.

This A06B0855B100 motor from the Fanuc ALPHA 8/6000 Series AC spindle motor range is fitted with a standard AC ALPHA spindle feedback for the serial spindle controllers and CNC’s which is available either as exchange, outright surplus, repair, and also testing services. – other Fanuc AC Spindle Motors. Warranty for all ALPHA 8 spindle motors is 12 months.

Additional information


180 Day Warranty
